ZOWIE Bridge Rectifiers

     ▓ Features

• Low profile
• Leadless chip form
• Reverse side solder available
• High current capability
• Low IR
• Lower EMI

          Click here for ZPAK™ bridge application example.

▓ Quick Selection Table for General Purpose Bridge Rectifiers

IF/VR	1A	2A	3A	4A	6A
2000V	MBCR10ZH
1600V	MBCR10YH
1000V	LX10M	Z4GP20MH	Z4SGP30MDPH	Z4GP40MH	Z4GP60MPH
		Z4GP20MPH	Z4GP30MPH
	MBCR10MPH	Z4RGP20MH (Fast Recovery)	Z4RGP30MPH (Fast Recovery)
	MBCR10EMH (High  Efficiency)	Z4EGP20MH (High  Efficiency)	Z4RGP30MAPH (Fast Recovery)
800V	MBCR10EKH (High Efficiency)	Z4GP20KH
600V	MBCR10EJH (High Efficiency)	Z4GP20JH

Package

Purple: MBCN

Orange: MBCR

Gray: Z4PAK

Green: Z4PAK-M

Blue: Z4PAK-D

Trr

Fast Recovery: 100~500nS

High Efficiency: 50~75nS



▓ Quick Selection Table for Schottky Bridge Rectifiers

IF/VR	1A	2A	3A
40V	SLX104MH	SLX204MH
		SLX204MAH
		SLX204UH
	SMBC104H	SMBC204H	SMBC304MH
60V	SLX106UH	SLX206UH
	SMBC106H	SMBC206H	SMBC306MH
100V	SMBC110H	SMBC210H



Package

Purple: MBCN

Yellow: MBC

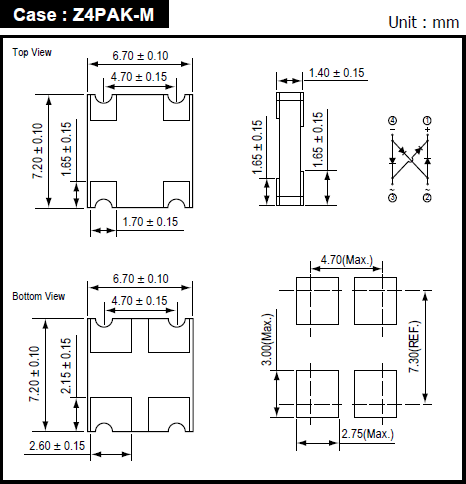

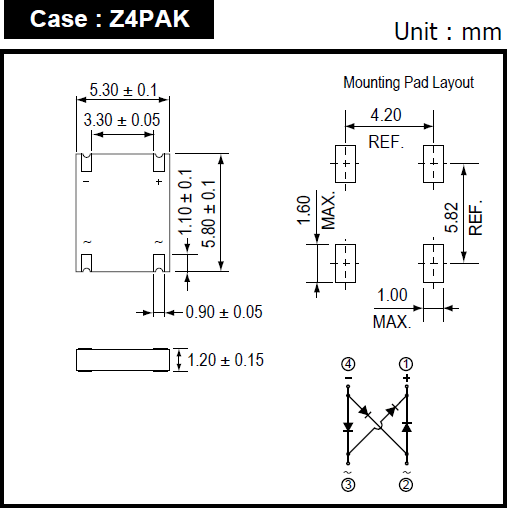

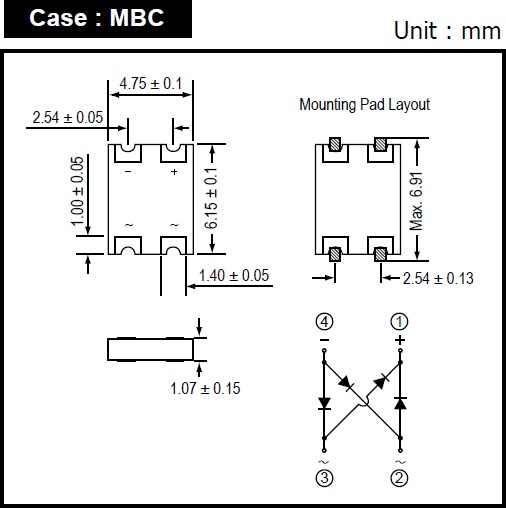

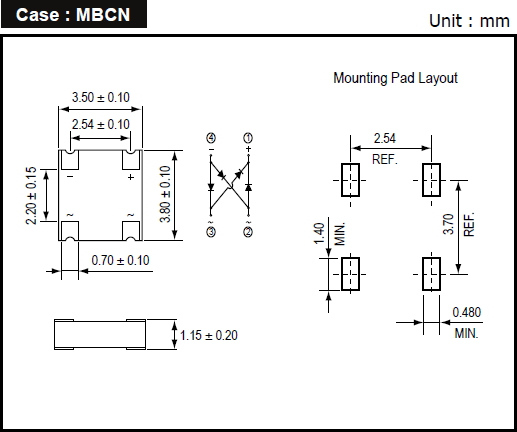

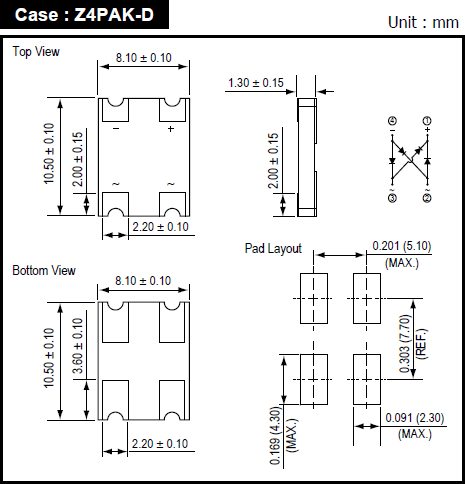

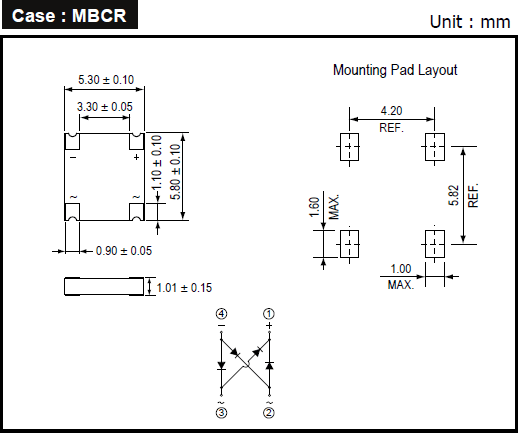

 ▓ Outline Dimension
