    ZOWIE's brand new compact, high thermal performance Zpak series is now available.
      2011-05-19



 ZOWIE's brand new compact, high thermal performance ZPAK series is now available

ZOWIE developed the ZPAKTM high current density surface mount family  with wide heatsink design for superior thermal performance and  reliability.ZOWIE developed the ZPAK  high current surface mount family with wide heatsink design for superior thermal performane and reliability.

The ZPAK  family was ideal for high temperature operations and designed to provide more power capability in a small space for applications such as the compact SMPS, lighting, solar junction box, DC fan and versatile portable electronics.

features

     Low profile SMD package

      Superior thermal performance and reliability

      High current density and surge

      Environmental friendly

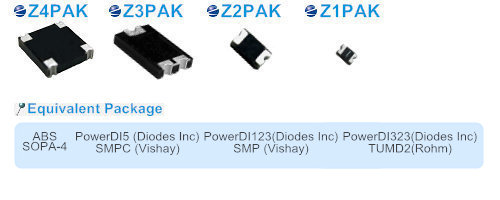

ZPAK Family (SCD with high thermal performance)

 ZOWIE developed the ZPAKTM high current density surface mount family  with wide heatsink design for superior thermal performance and  reliability.

Low Profile and Compact

       Z1PAK / Z2PAK -Only 0.9 /1mm tall, compare

           (w/ 0.9mm/1.2mm for SOD-323/SOD-123)

       Z3PAK -Only 1.2mm tall, occupies only 21mm  of PCB space, ideal for

           height limited applications, good replacement for DPAK, TO packages

         Z4PAK -Only 1.3mm tall, occupies only 31mm  of PCB space, ideal for

           height limited applications, good replacement for GBP & DFS packages

Datasheet


 Z1PAK   Z1PK054TH / Z1PK104H / Z1PK104SH / Z1PK106H / Z1PK106RH / Z1PK110H / Z1PK204TH
 Z2PAK Z2PK102H~Z2PK104H /Z2PK106H Z2PK110H /Z2PK115H /Z2PK120HZ2PK204HZ2PK204LH Z2PK206H / Z2PK210H /Z2PK215H /Z2PK220H / Z2PK304H / Z2PK304RHZ2PK306H /Z2PK310H /Z2APK34H / Z2APK36H /Z2APK54MH / Z2APK56H
 Z3PAK Z3PK1045RH / Z3PK2045H / Z3PK1060H / Z3PK1060DHZ3PK845H / Z3PK860H Z3PK10200H / Z3PK10200DH / Z3PK10150H / Z3PK10150DH / Z3PK10100H / Z3PK10100DHZ3PK8200H / Z3PK8150H / Z3PK8100H / Z3PK1045H/ / Z3PK1045DH / Z3PK1045PH / Z3PK1545TH
 Z4PAK Z4GP20JH~Z4GP20MH / Z4GP20JLH~Z4GP20MLH
